ZL-DGX

product Parameters
Product Parameters
Product Name
DGx  Bracket Peristaltic Pumps
Product Model
JBT
Type
ZL Type
JLT Type

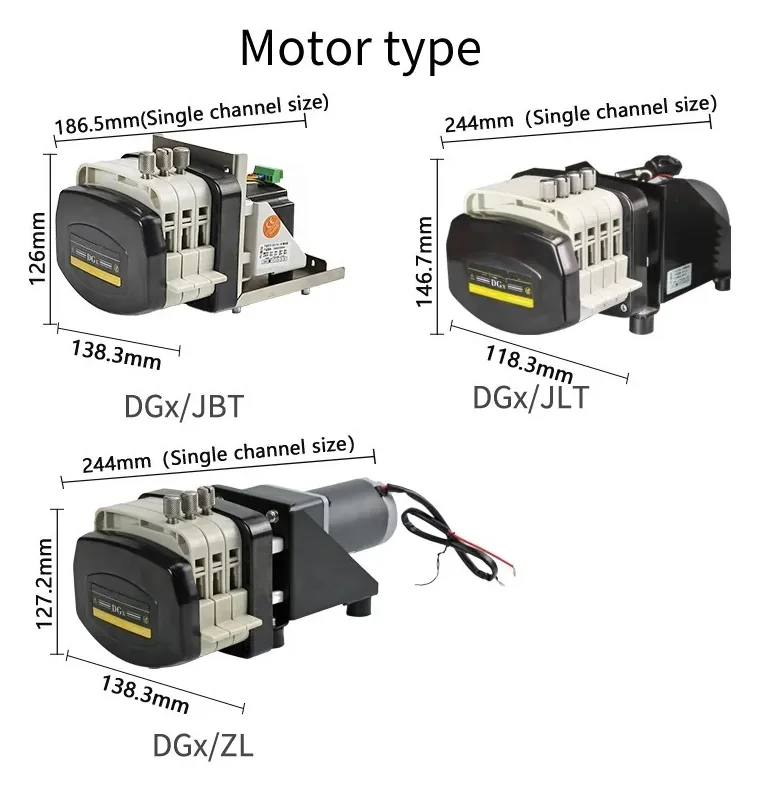

Motor Type
Stepper motor
DC motor
AC motor
Voltage
24V
24V
220V
Power
40W
48W
25W
Weight
(4-
channel
)
3.2Kg
3.5Kg
4.7Kg
Work Environment
Temperature 0 (no icing)～60℃, relative humidity≤85%
Outlet Pressure
≤0.17MP
Function
Start/stop, cw/ccw rotation, up/down speed
Start/stop, cw/ccw rotation
Start/stop, cw/ccw rotation, up/down speed
Main Material
Pump head: POM Roller: 304
stainless steel
Reference Flow Rate
Reference Flow of Single Channel (unit: ml/min)
Motor Speed/Tube Type
14#(ID1.6*OD4.8)
16#(ID3.2*OD6.4)
25#(ID4.8*OD8)
300r
DGx/JBT
77
233
430
Number of Channels
3
3
1
100r～500r
DGx/ZL
26～128
77～388
143～716
Number of Channels
4
4
4
100r～450r
DGx/JLT
26～115
77～349
143～645
Number of Channels
4
2
2
1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
2. The total flow of multiple channels ≈ single channel flow * number of channels
DGx Easy Mounting Bracket OEM Peristaltic Pumps
Models:
DGx/JBT
Maximum channel quantity:
4
Reference flow rate:
≤716ml/min
■ Cassette type multi-channel precision peristaltic pump
■ Provide three drive control solutions to choose from: DC motor, stepper motor, and AC motor
■ Quick-install cassette structure enables quick installation of flexible tubes and channels
■ 8 rollers for low pulsation conveying to ensure the accuracy of flow between channels
■ The pressure pipe gap can be fine-tuned to ensure flow consistency
■ Channels can be selected from 1 to 4, single channel flow rate is 0~716ml/min
