DT-JBT

Product Parameters
Product Parameters
Product Name
Bracket Peristaltic Pumps
Product Model
DT/JBT
Voltage
DC 24V，3A
Power
≤36W
Drive
57 type stepper motor drive
Work Environment
Temperature 0 (no icing)～60℃, relative humidity≤85%
Weight
1950g（DT4）
Outlet Pressure
≤0.10MPa
Noise
≤60dB（testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.）
Speed Range
≤150rpm/min
Function
Start/stop, cw/ccw rotation, up/down speed
Product Parameters
Reference Flow of Single Channel (unit: ml/min)
Motor Speed/Tube Type
Silicone tube
Silicone tube
1*1
(ID1*OD3)
2*1 (ID2*OD4)
3*1 (ID3*OD5)
1*1 (ID1*OD3)
2*1 (ID2*OD4)
3*1 (ID3*OD5)
150rpm
10
30
50
9.5
30
55
Number of Channels
≤12
≤12
≤12
≤8
≤8
≤6
Flow Description
1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
2. The total flow of multiple channels ≈ single channel flow * number of channels

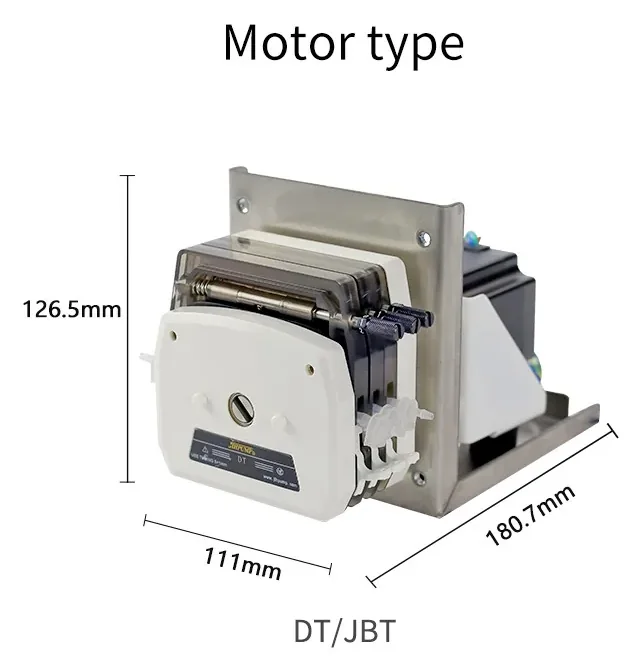

DT/JBT Easy Mounting Bracket OEM Peristaltic Pumps
Models:
DT/JBT
Maximum channel quantity:
12
Reference flow rate:
≤55ml/min(Reference Flow of Single Channel）
■ Easy-to-install peristaltic pump head, easy to disassemble and install tubes
■ The pump head can be installed with 1×1, 2×1, 3×1 and other tubes with a wall thickness of 1mm
■ Can be adapted to various drives such as stepper motors, DC geared motors, AC motors, etc.
■ Stepper motors have three types of drivers to choose from: JBT-BM voltage type, JBT-BT communication type, and QBT-M1 pulse type
■ DT pump head has 2/3/4/6 multi-channel options, or 2 pump heads can be connected in series
