TB-334K

Product Parameters
Product Parameters
Product Model
334K/BT
334K/TB

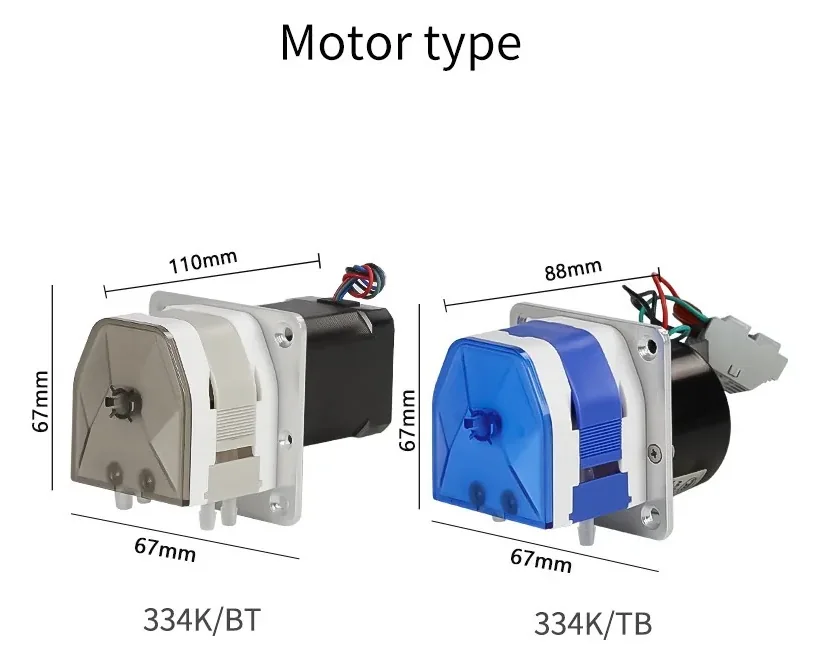

Motor Type
Stepper motor
Synchronous motor
Voltage
DC 24V，2A
AC 220V/50Hz
Power
≤30W
≤7W
Weight
575g（Single pump head）/660g（Double pump head）
330g（Single pump head）/410g（Double pump head）
Work Environment
Temperature 0 (no icing)～60℃, relative humidity＜85%
Outlet Pressure
≤0.17MPa
Tube Connection Method
Standard: Direct joint    Optional:Extended direct joint,Thread joint,Hard tube joint
Noise
≤50dB（Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 0.3 meter.）
Number of Channels
The single pump head has both single channel and dual channel, the pump head can also be connected in series as a dual pump head
Function
Start/stop, cw/ccw rotation, up/down speed
Start/stop, cw/ccw rotation
Main Material
Cover: PC    Roller：PA    Base：POM    Mounting plate: aluminum alloy
Reference Flow Rate
Reference Flow of Single Channel (unit: ml/min)
Product Model
334K/BT
334K/TB
Motor Speed/Tube Type
300rpm
10rpm
30rpm
13#(ID0.8*OD4)
10
0.3
1
14#(ID1.6*OD4.8)
35
1.3
4
19#(ID2.4*OD5.6)
80
2.5
8
16#(ID3.2*OD6.4)
115
3.5
11.5
25#(ID4.8*OD8)
210
7
22
Flow Description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
Models:
334K
Maximum channel quantity:
2
Reference flow rate:
≤210ml/min
■ The product has a compact structure, small and exquisite size
■ Tube installation is quick and easy. A single pump head can hold 1 or 2 tubes to form a single or dual channel
■ Double pump heads can be connected in series to double the flow rate
■ Standard equipped with 4-roller low-pulse rotor
■ The tube can be adapted to 1.6mm wall thickness tube
