WX3-ZL

Product Parameters
Product Parameters

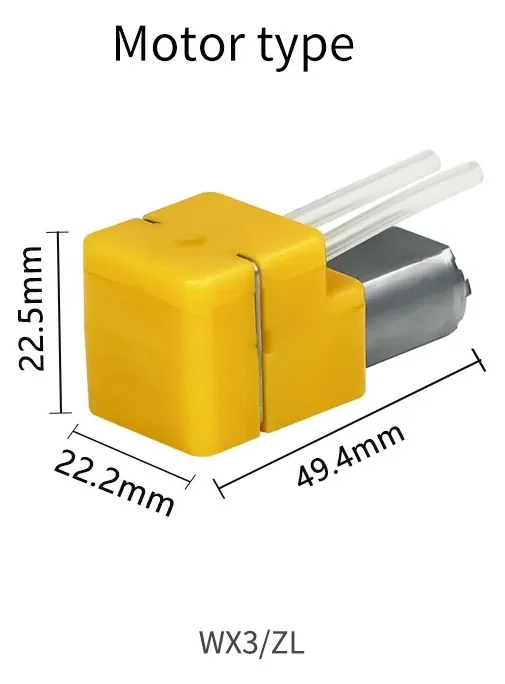

Product Model
WX3/ZL
Motor Type
Micro DC motor
Voltage
DC3.7V
Power
1～2W
Weight
29g
Work Environment
Temperature 0 (no icing)～60℃, relative humidity≤85%
Outlet Pressure
≤0.03MPa
Tube Connection Method
Standard: Direct joint
Installation Method
Pump body with mounting holes.
Noise
≤58dB
（testing environment noise≤40dB. The horizontal distance
between the test product and the noise meter is 0.3 meter.）
Function
Start/stop, cw/ccw rotation
Main Material
Pump cover: POM, Wheel frame: POM, Rollers: 304 Stainless Steel
Reference Flow Rate
Reference Flow Rate（unit: ml/min）
Motor Speed/Tube Type
Silicone tube
Fluorine rubber tube（V）
BPT tube
ID 1.6mm*wall 0.8mm
220rpm
10
7.1
7.1
Flow description: The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
Typical Applications
Trace element analyzer, sweeping robot, chemiluminescence analyzer, mini water quality, soap dispenser, beauty instrument, essential oil transportation, tobacco oil transportation
Maximum channel quantity:
1
Reference flow rate:
≤10ml/min
■ A micro-peristaltic pump with micro-flow
■ Compact structure, small size, fine workmanship
■ Stainless steel roller, stable longevity
■ Metal anti-cover clip, prevent cover off, more stable operation
■ Pump body comes with mounting holes
■ Suitable for use with small household appliances.
