WX2-ZL

Product Parameters
Product Parameters
Product Model
WX2/ZL
WX2/ZLX

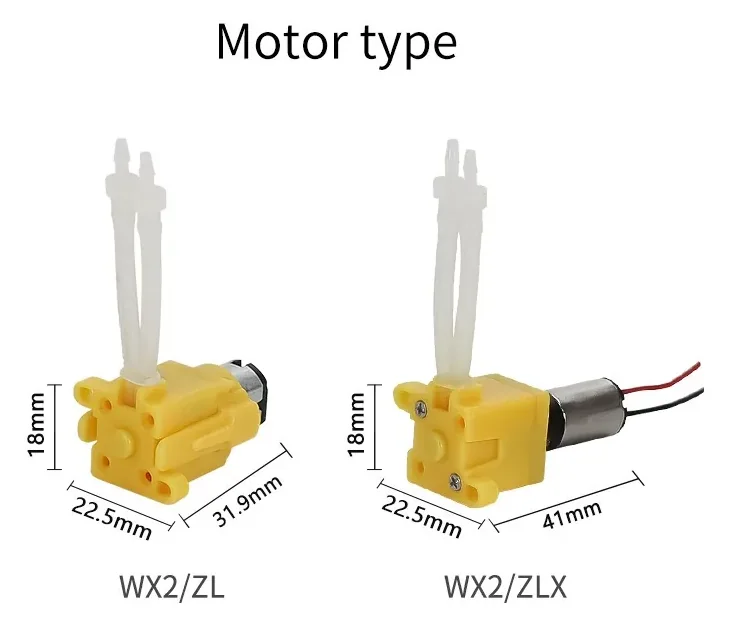

Motor Type
Micro DC motor
Micro DC planetary motor
Voltage
DC 3.0V(220rpm)/3.7V(300rpm)
DC 3～6V
Power
≤1W
≤1.2W
Weight
14.2g
10g
Work Environment
Temperature 0 (no icing)～60℃, relative humidity≤85%
Outlet Pressure
≤0.03MPa
Tube Connection Method
Standard: Direct joint
Installation Method
Pump body with mounting holes.
Noise
≤60dB
≤48dB
（The horizontal distance between the test product and the noise meter is 0.3 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Main Material
Pump cover: POM, Wheel frame: POM, Roller: POM
Refence Flow Rate
Reference Flow Rate（unit: ml/min）
Motor Speed/Tube Type
ID 1.6mm*wall 0.8mm
TPE tube
Fluorine rubber tube（F）
Fluorine rubber tube（V）
BPT tube
WX2/ZL
3.0V-220r
1.9
2
-
1
3.7V-300r
2.6
2.8
1.9
1.5
WX2/ZLX
6V-290r
1.2～2.7
1～2.4
0.5-1.5
0.6～1.7
Flow description: The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
WX2 Micro OEM Peristaltic Pumps
Models:
WX2
Maximum channel quantity:
1
Reference flow rate:
≤2.8ml/min
■ Micro dosing flow
■ Compact structure, small size, fine workmanship
■ Light weight, weighing only 10g
■ Low noise, suitable for use for small household appliances
■ Adaptable to strong corrosion resistant tube
■ High-speed micro motor for interval operation
■ Pump body has mounting panel for easy fixing.
