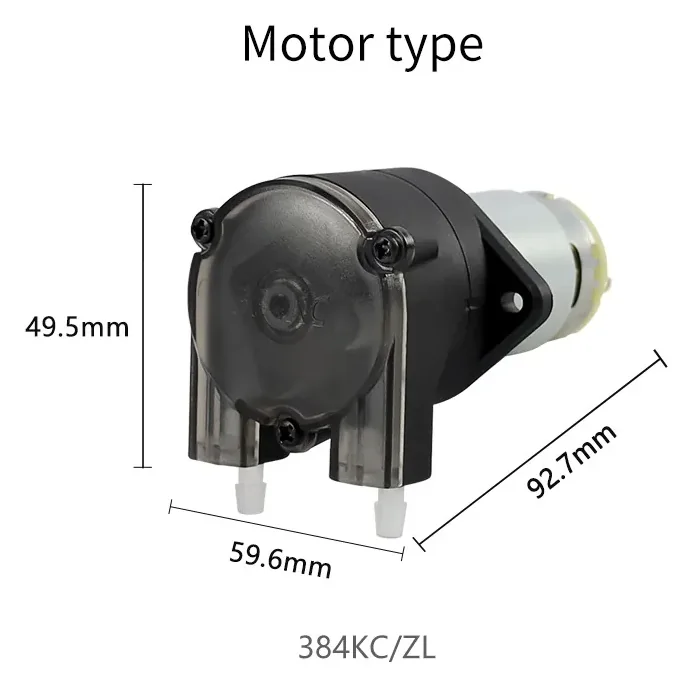

ZL-384KC

Product Parameters
Product Parameters
Product Model
384KC
Motor Type
DC gear motor
Motor Characteristics
1. Low precision requirements    2. Short time interval operation
Voltage
DC12V，1A/24V，1A
Power
≤15W
Motor Life
500~1000h
Weight
120g
Work Environment
Temperature 0 ~ 60℃, relative humidity＜85%RH
Outlet Pressure
≤0.17MPa
Installation Method
The outlet direction of the pump head can be selected in four directions: up, down, left, right
Tube Connection Method
Standard: Direct head     Options: Thread joint,Hard tube joint
Noise
≤55dB（ The horizontal distance between the test product and the noise meter is 0.3 meter.） ；≤45dB（The horizontal distance between the test product and the noise meter is 1 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Main Materials
Pump cover: PC   Roller: PA   Base：PA
Reference Flow Rate
Reference Flow Rate(unit: ml/min)
Motor Speed/Tube Type
Silicone tube
A-60-F tube
16#(ID3.2*OD6.4)
25#(ID4.8*OD8)
16#(ID3.2*OD6.4)
25#(ID4.8*OD8)
24V 600rpm
280
640
280
550
12V 600rpm
310
670
210
--
12V 250rpm
120
220
--
--
Flow description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
Models:
384KC
Maximum channel quantity:
1
Reference flow rate:
≤670ml/min
■ Small size, exquisite, low noise, suitable for quiet environment;
■ The pump cover can be rotated 90° or 180° for installation in four directions;
■ Four-roller low-pulse design;
■ The motor has a high speed and is suitable for intermittent operation;
■ Quick installation peristaltic pump, quick replacement of tubes;
■ The base of the pump body is designed with strip-shaped mounting holes that can be directly fixed to user's equipment.
