BT-TH408

Product Parameters
Product Parameters
Product Model
TH408
Motor Type
Stepper motor
Motor Characteristics
1.  Meeting high-precision requirements    2.  Long continuous operation
Voltage
DC 24V，2A
Power
≤12W
Motor Life
5000~20000h
Weight
670g
Work Environment
Temperature 0 ~ 60℃, relative humidity≤85%
Outlet Pressure
≤0.17MPa
Tube Connection Method
Standard: Direct head
Options: Hard tube joint,Thread joint,Extended direct joint
Noise
≤55dB (（testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.)
Function
Start/stop, cw/ccw rotation, up/down speed
Main Materials
Support panel: stainless steel    Lower support: POM   Wheel frame: stainless steel
Roller: POM   Mounting plate: stainless steel
Reference Flow Rate
Reference Flow Rate(unit: ml/min)
Product model
TH408(Single channel)
TH408（Double channel）
Motor speed/Tube type
300rpm
300rpm
14#(ID1.6*OD4.8)
45
90
16#(ID3.2*OD6.4)
160
320
19#(ID2.4*OD5.6)
95
190
25#(ID4.8*OD8)
320
-
Flow description
1.The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
2.Total dual-channel flow ≈ single-channel flow x 2

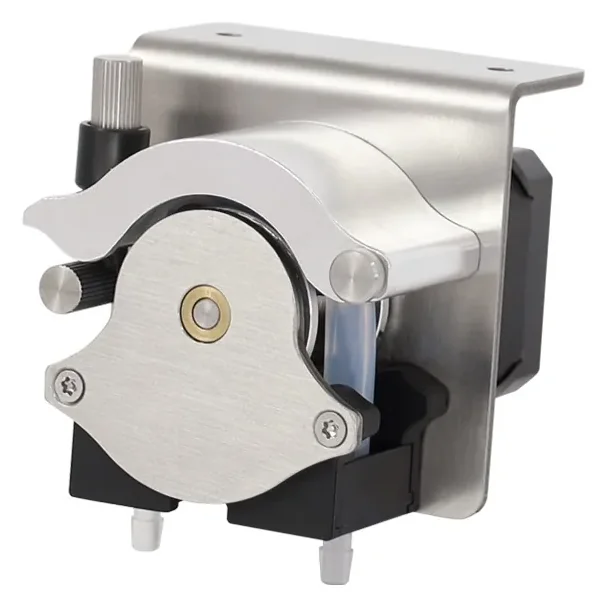

TH408 Spring Rotor OEM Peristaltic Pumps
Models:
TH408
Maximum channel quantity:
2
Reference flow rate:
≤320ml/min
■ Metal pump head, compact and exquisite
■ Movable pressing block makes tube installation quick and easy
■ The over-pressure gap is adjustable and has spring self-adaptive function
■A single pump head can hold 1 or 2 tubes to form a single or dual channel
■ The rotor set is available with 4 rollers or 8 rollers, with various flow options.
■ Can be adapted to 1.6mm wall thickness hose
