ZLX-683K

Product Parameters
Product Parameters
Product Model
683K/ZL
683K/ZLX
683K/BT

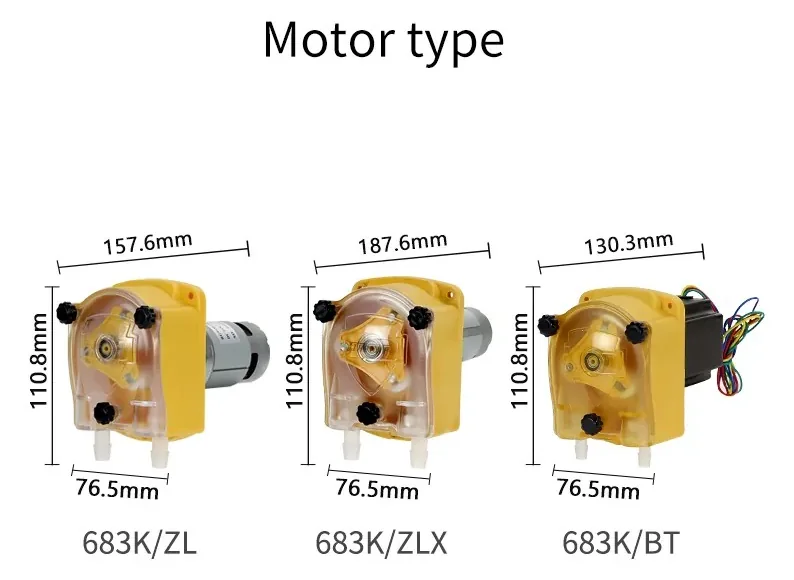

Motor type
DC gear motor
DC planetary gear motor
Stepper motor
Voltage
DC12V/24V
DC12V/24V
DC24V
Power
12W～36W
12W～36W
≤48W
Weight
715g
595g
1210g
Working Environment
Temperature (no icing) 0 ~ 60℃, relative humidity < 85%RH
Outlet Pressure
26# A-60-F tube ≤0.27MPa,36# A-60-F tube ≤0.14MPa, silicone tube ≤0.1MPa
Tube Connection Method
Standard:  Direct joint     Optional: Right angle joint,Adjustable joint,Thread joint
Noise
≤64dB
≤60dB
(Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Main Material
Pump cover: PC    Roller: POM   Base: PA
Reference Flow Rate
Reference Flow Rate（unit: ml/min）
Product Model
683K/ZL
683K/ZLX
683K/BT
Motor Speed/Tube Model
166r
326r
507r
300r
300r
26#(ID6.4*OD13 mm)
580
1035
1755
985
1015
36#(ID9.6*OD14.4 mm)
1080
1995
3215
1890
1905
Flow Description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
Models:
683K
Maximum channel quantity:
1
Reference flow rate:
≤3215ml/min
■ A simple and smooth peristaltic pump with a more reasonable structure
■ Compact, large flow rate, reliable constant flow rate peristaltic pumps
■ Compatible with tube 26#、36#: 26# tube suitable for 26 # tube is suitable for high pressure
■ Liquid transferring, 36 # tube is suitable for large flow liquid transferring
■ Can be adapted to DC Gear motor, DC planetary, stepper motor and other drive motors
■ Pump base has its own mounting holes, no need to add separately.
