BT-TH504

Product Parameters
Product Parameters
Product model
TH504/BT
TH504/TB

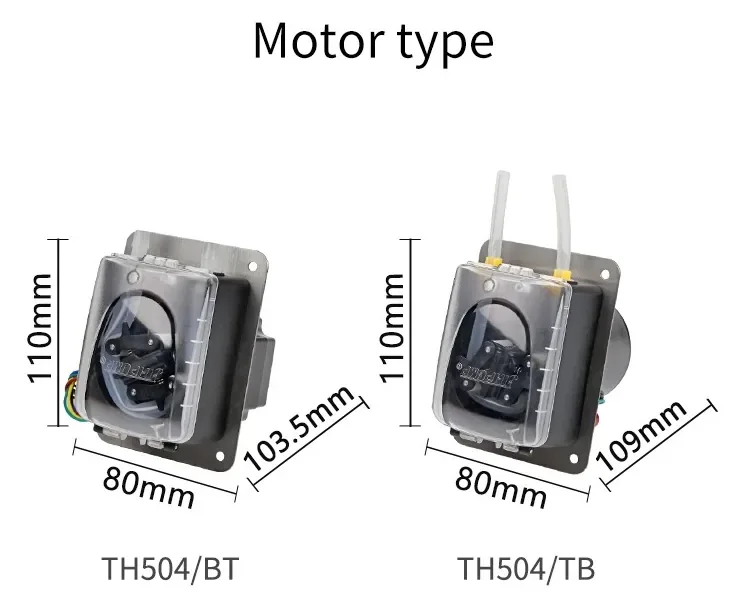

Motor type
Stepper motor
Synchronous motor
Voltage
DC 24V，4A
AC 220V,50Hz
Power
≤36W
≤25W
Weight
870g
675g
Work Environment
Temperature 0 ~ 60℃, relative humidity≤85%
Outlet Pressure
≤0.17MPa
Tube Connection Method
Options: Direct joint, Hard tube joint,Thread joint,Extended direct joint,Adjustable joint,Reducer threaded joint,Reducer hard tube joint
Noise
≤65dB
≤60dB
（testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Start/stop, cw/ccw rotation
Main Materials
Pump cover: PC/PP  Wheel frame: PP   Roller: POM   Base: PP (black)
Models:
TH504
Maximum channel quantity:
1
Reference flow rate:
≤800ml/min
■ Streamlined appearance, visual design of pump cover, easy to clean and observe the operating status
■ With suction flip type design for reliable operation and convenient tube change
■ Automatic protection for opening pump cover
■ Full tube mounting and built-in tube with joint fixing
■ Drainage tank design ensures no fluid in the pump
■ The product has ability of corrosion resistant
■ Can adapt to a normal DC motor, stepper motor, synchronous motor;
■ Comes with mounting panel.
