BT-203KA

Product Parameters
Product Parameters
Product Model
203KA/ZL
203KA/ZLX
203KA/BT

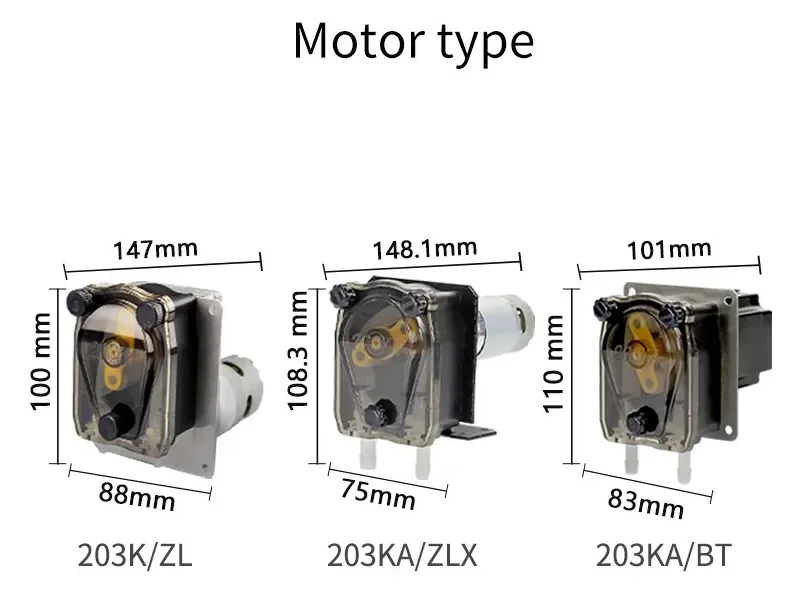

Motor Type
DC gear motor
DC planetary gear motor
Stepper motor
Voltage
DC12V/24V
DC 24V,2A
Power
12W～20W
5～15W(Silicone tube)
8W ~ 30W(inlet tube)
24W(5756 motor)
42W(5776 motor)
Weight
808g
552g
837g (5756 motor) /1156g (5776 motor)
Working Environment
Temperature 0~60℃, relative humidity <85%RH
Outlet Pressure
≤0.17MPa
Tube Connection Method
Standard: Direct joint    Optional: Reducer threaded joint,Thread joint,Adjustable joint
Noise
≤77dB
≤65dB
≤50dB
(Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Main Material
Pump Cover: PC   Roller: POM   Base: PA    Mounting Plate: 304 Stainless Steel/Carbon Steel
Reference Flow Rate
Reference Flow Rate（unit: ml/min）
Product Model
203KA/ZL
203KA/ZLX
203KA/BT
Motor Speed/Tube Model
135r
166r
150r
300r
300r
15#(ID4.8*OD9.6)
220
285
225
485
485
24#(ID6.4*OD11.2)
380
470
400
870
895
Flow Description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
Models:
203KA
Maximum channel quantity:
1
Reference flow rate:
≤895ml/min
■ A simple and smooth quick-installation peristaltic pump
■ Can be installed with 15# and 24# peristaltic pump tubes
■ This peristaltic pump (constant flow pump) can be adapted to a variety of drive motors such as DC, DC planet, and stepper.
■ The pump body is equipped with a mounting plate and can be directly installed on the equipment.
