WX1-ZL

Product Parameters
Product Parameters
Product Model
WX1

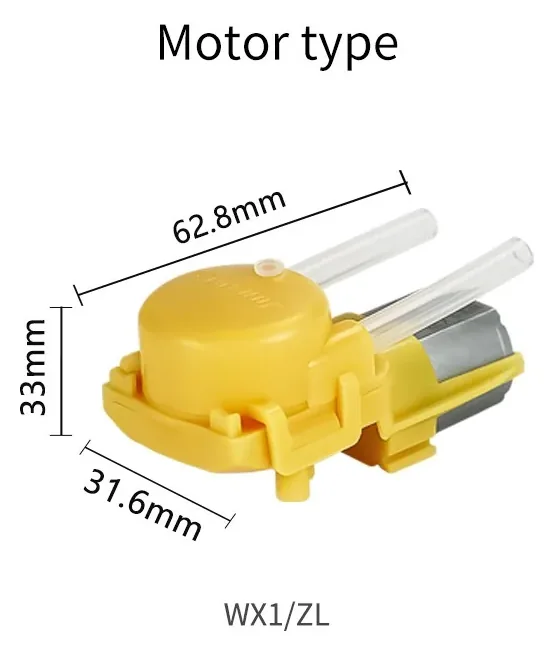

Motor Type
Geared DC motor
Voltage
DC3～6V / DC6～12V
Power
1～3W
Motor Life
≥150h
Weight
41g
Work Environment
Temperature 0 (no icing)～60℃, relative humidity≤85%
Outlet Pressure
≤0.1MPa
Tube Connection Method
Standard: Direct joint,Hard tube joint
Installation Method
Pump body with mounting holes.
Noise
≤55dB （Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 0.3 meter.）
Function
Start/stop, cw/ccw rotation
Main Material
Cover: POM    Rotor frame: POM   Rollers: PA
Reference Flow Rate
Reference Flow Rate（unit: ml/min）
Motor Speed/Tube Type
Silicone tube（ID*OD*Wall  unit: mm）
BPT tube
3*5*1
4*6*1
3*5*1
3~6V 116rpm
13～26
18～45
12～23
6~12V 116rpm
11～28
20～50
10.5～28
6~12V 200rpm
25～50
38～80
20～46
Flow Description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
WX1 Micro OEM Peristaltic Pumps
Models:
WX1
Maximum channel quantity:
1
Reference flow rate:
≤80ml/min
■ Tube inlet and outlet directions can be adjusted according to user's applications (can be rotated 180 °).
■ Fine workmanship, compact and compact structure
■ Light weight, only 41g
■ Low noise, suitable for supporting small household appliances
■ 3-roller low-pulse design, suitable for micro dosing
■ High-speed micromotors suitable for interval operation
■ The back of the pump body is designed with mounting holes, which can be directly fixed on the user equipment.
