ZL-293KC

Product Parameters
Product Parameters
Product Model
293KC

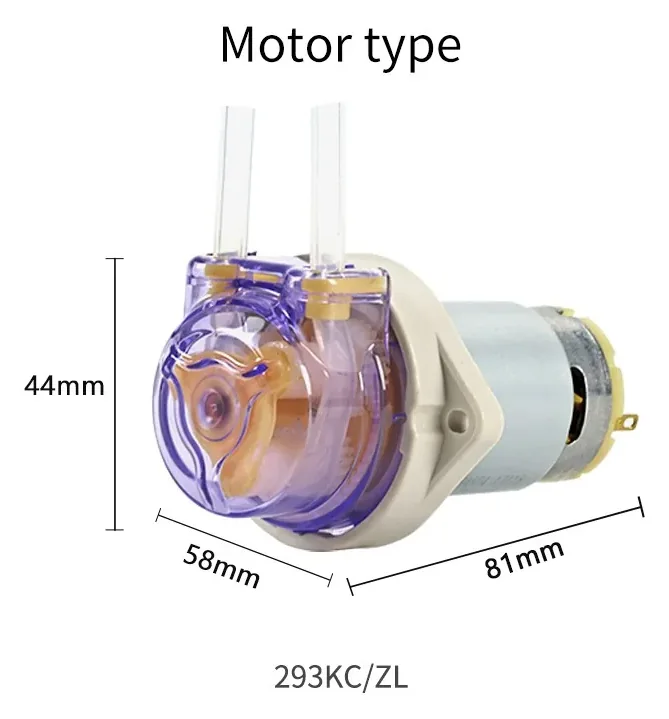

Motor Type
DC gear motor
Voltage
DC12V/24V，1A
Power
≤15W
Work Environment
Temperature 0 ~ 60℃, relative humidity＜85%RH
Weight
145g
Outlet Pressure
≤0.1MPa
Noise
≤80dB（ The horizontal distance between the test product and the noise meter is 0.3 meter.）
Function
Start/stop, cw/ccw rotation, up/down speed
Main Materials
Pump cover: PC   Roller: PA    Wheel frame: POM
Reference Flow Rate
Reference Flow Rate(unit: ml/min)
Motor Speed/Tube Type
Silicone tube（ID*OD*WALL  unit: mm）
BPT tube
1*3*1
2*4*1
3*5*1
4*6*1
3*5*1
12V 600rpm
23
81
151
225
150
24V 680rpm
29
114
182
270
175
Flow Description
1.The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.
2.Dc motor life is about 500-1000h, short time interval operation
293KC Quick Mounting Panel OEM Peristaltic Pumps
Models:
293KC
Maximum channel quantity:
1
Reference flow rate:
≤270ml/min
■ Streamlined appearance, exquisite and compact
■ Tube directions can be adjusted according to customer system application

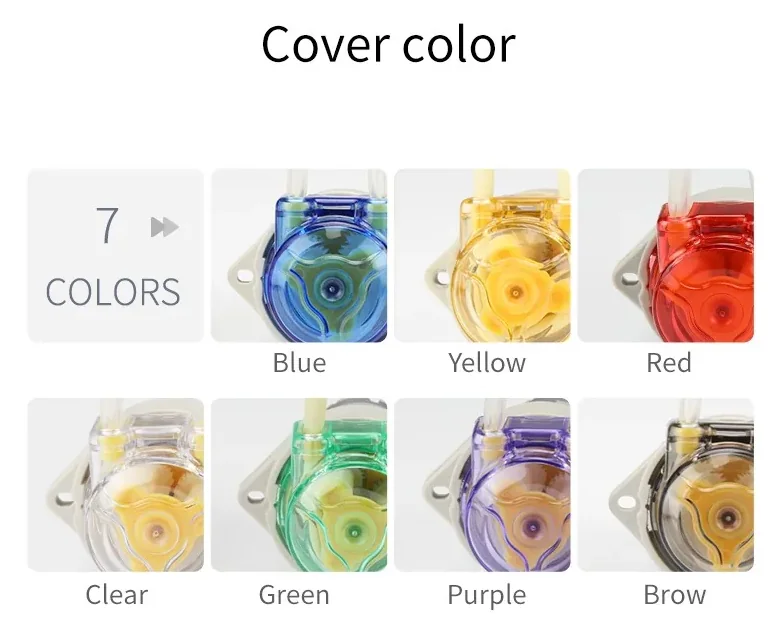

■ The pump cover is available in clear, blue and yellow color.
■ 3-roller design, suitable for low pulse dose
■ High speed micro motor, more suitable for interval operation
■ The pump base is designed with strip-shaped mounting holes, which can be directly fixed to
user's equipment.
